| Parameter | 15 m² | 30 m² | 50 m² | 100 m² | |
|---|---|---|---|---|---|
| Material | Option A: Aluminum profile frame / galvanized square steel (electrostatic spray) + baked enamel steel panel + hollow glass window Option B: SUS304 stainless steel frame + stainless steel panel + hollow glass window | ||||
| Class 1–100 (ISO 3–5) | FFU Qty | 12 pcs | 24 pcs | 48 pcs | 96 pcs |
| FFU Size | 1175 × 875 × 325 mm | ||||
| Luftveränderungen | Full ceiling coverage (100% FFU coverage) | ||||
| Class 1K (ISO 6) | FFU Qty | 3 pcs | 6 pcs | 9 pcs | 18 pcs |
| FFU Size | 1175 × 875 × 325 mm | ||||
| Luftveränderungen | 90–120 ACH (adjusted per external conditions) | ||||
| Class 10K (ISO 7) | FFU Qty | 2 pcs | 4 pcs | 6 pcs | 12 pcs |
| FFU Size | 1175 × 875 × 325 mm | ||||
| Luftveränderungen | 60–80 ACH (adjusted per external conditions) | ||||
| Luftgeschwindigkeit | 0,45 m/s ± 20% | ||||
| Temperature (Recommended) | 18–28 °C | ||||
| Humidity (Recommended) | 50–70 %RH | ||||
| Illuminance | 400–800 lux | ||||
| Strom | 2.4–7 kW | 4.8–10 kW | 9.6–19 kW | 19.2–30 kW | |

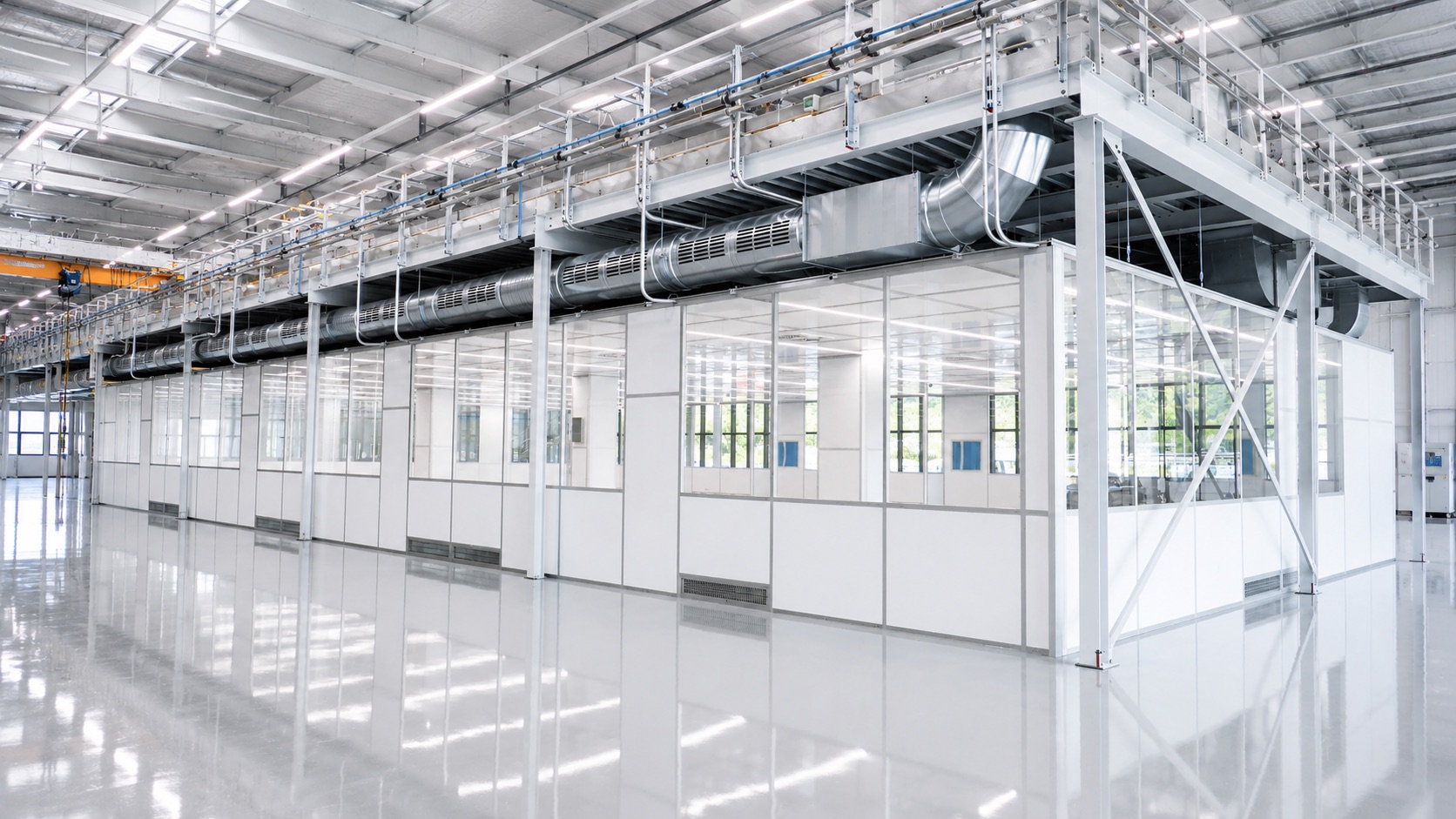

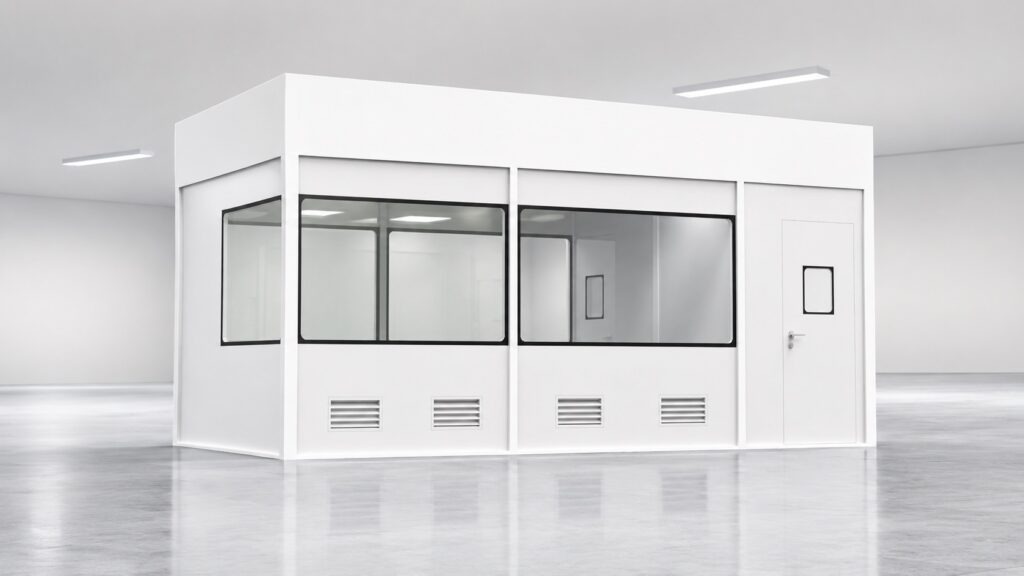

Modular Structure
Built with panels, frames, ceiling grids, cleanroom doors and flooring systems.
Kontrollierter Luftstrom
Configured with FFU, HEPA filtration, return air and pressure control options.
Custom Layout
Designed around your production process, equipment layout and cleanroom workflow.
Expandable Design
Can be expanded, modified or upgraded as your production requirements change.
ISO Class Options for Controlled Cleanroom Environments
YOUTH modular cleanrooms can be configured for different ISO-class controlled environments depending on the application. The final cleanroom class depends on room size, air change rate, HEPA filtration coverage, airflow pattern, leakage control, personnel movement and process contamination load.
Common project options include ISO Class 5, ISO Class 6, ISO Class 7 and ISO Class 8 cleanroom environments.
| ISO-Klasse | Gemeinsame Nutzung |
|---|---|
| ISO-Klasse 5 | Critical local clean zones, high-cleanliness work areas |
| ISO-Klasse 6 | Precision manufacturing and high-control processes |
| ISO-Klasse 7 | Pharmaceutical, medical device and electronics production |
| ISO-Klasse 8 | General clean production, packaging and controlled assembly |
* The required ISO class should be confirmed based on your product, process, regulatory requirements and contamination control strategy.
Industries and Applications

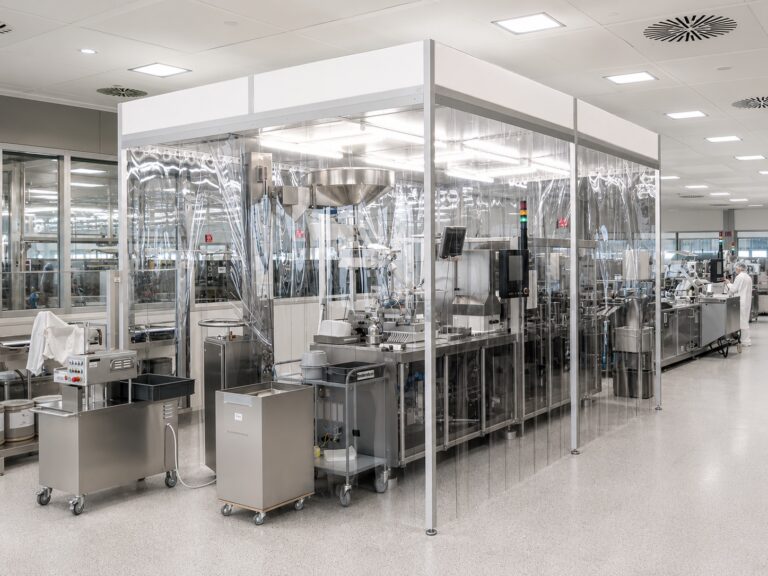

Pharmazeutische Herstellung
Clean areas for material transfer, compounding, packaging, sampling and controlled production.
Medizinische Geräte
Controlled environments for assembly, inspection, packaging and sterile device-related processes.

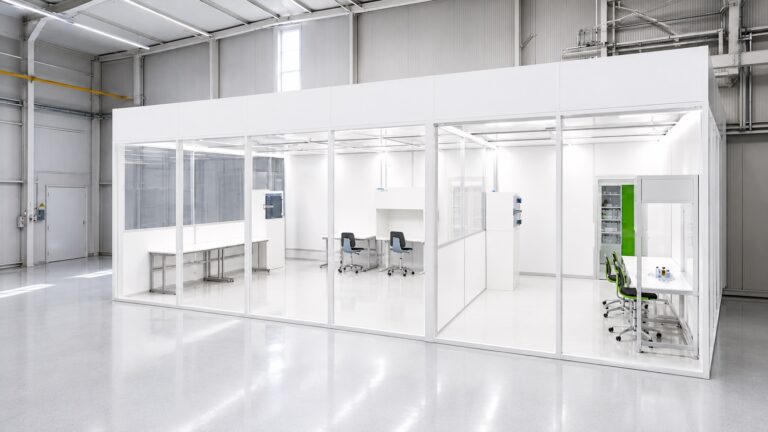

Laboratories and Research Facilities
Modular clean areas for laboratory preparation, sample handling and controlled experimental workflows.
Food, Cosmetics and Packaging
Clean production environments for hygiene-sensitive manufacturing and packaging operations.
Electronics and Semiconductor
Particle-controlled spaces for precision assembly, wafer-related processes and electronic component manufacturing.
Core Components of a Modular Cleanroom System
A modular cleanroom is not only a room enclosure. It is a complete controlled-environment system built from cleanroom-compatible components. YOUTH can supply the main cleanroom structure and related equipment according to your project requirements.
Information Needed for a Modular Cleanroom Quote
Please tell us:
- Required room size or available installation area
- Target ISO class
- Application industry and production process
- Hardwall or softwall preference
- Required temperature and humidity control
- Number of operators inside the cleanroom
- Main equipment installed inside the room
- Material and personnel flow requirements
- Country or project location
FAQ
Can a modular cleanroom be customized?
Yes. Room size, layout, wall material, ceiling system, doors, airflow design, filtration level and supporting equipment can all be customized according to the project.
What ISO class can your modular cleanrooms support?
YOUTH can configure modular cleanrooms for common ISO-class applications such as ISO Class 5, ISO Class 6, ISO Class 7 and ISO Class 8. The final design depends on process requirements and room conditions.
Is a modular cleanroom better than traditional construction?
For many projects, modular cleanrooms offer faster installation, easier expansion, cleaner construction and better flexibility than traditional site-built cleanrooms.
Can you provide both hardwall and softwall cleanrooms?
Yes. YOUTH can provide both hardwall modular cleanrooms and softwall portable cleanrooms.
What information do you need before quoting?
The most important information includes room size, ISO class, application, process flow, equipment layout, installation location and any temperature or humidity control requirements.
