Panel Medium-Efficiency Air Filter

Share By:

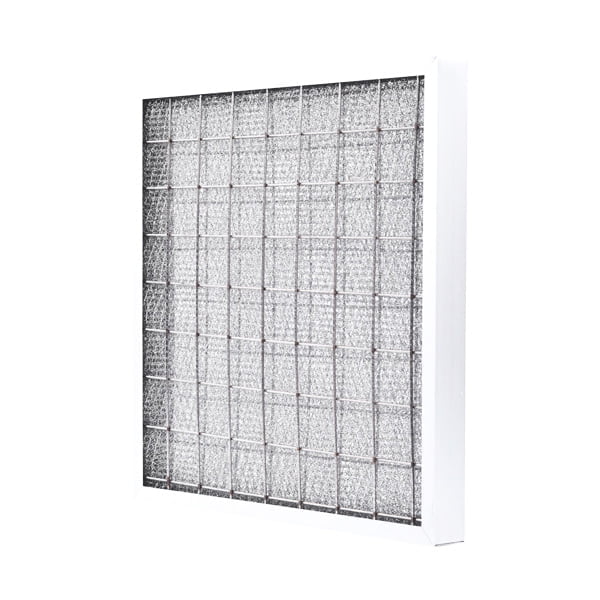

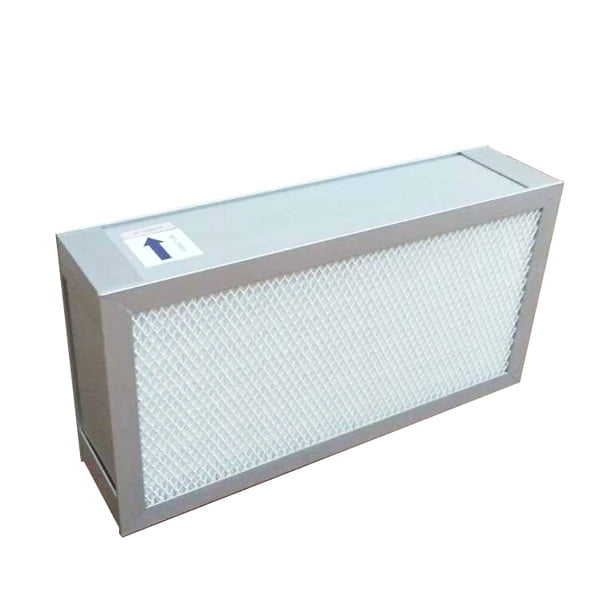

Panel Medium-Efficiency Air Filter

/ Medium-Efficiency Air Filter / By

Panel Medium-Efficiency Air Filter is mainly used for dust particle pollutants ≥1μm in the middle section of the clean room, and it is used for the high-efficiency filters in the middle and rear sections to filter out large particles of pollutants. Increase the filtration efficiency and service life of the middle and rear filters.
According to the different filtration performance requirements of the clean room, the filter media of the plate air filter can be multi-layer composite synthetic fiber cylindrical materials, synthetic fiber non-woven fabrics of different thicknesses, glass fiber cotton, etc.

Type: PF-G4 PF-M5
Class EN779 G4 M5
Efficiency against synthetic dust [%] 91% 97%
Initial-ΔP [Pa] 25 60
Recommended finalΔP [Pa] 250 400
Max. temp. [°C] 70° 70°
Model

(E=efficiency)

 Dimensions [mm] Nominal airflow[m3/h]
Width Height  Depth
PF28759246-E (G4/M5) 287 592 46 1600
PF28759246-E (G4/M5) 592 592 46 3200
Customized Filters Type :150≤W≤1184,150≤H≤1184 and 10≤D≤292.

Product Features

Blower

The blower adopts Rosenberg blower independent wind box.
6000~1000CMH/ Set.
Centrifugal blower,lubrication-free.
Safe Wiring Mode
Complete test data
Security protection measures

HEPA Suppervised Device​

The high-efficiency filter is installed behind the blower, that is, the positive pressure section, and is installed perpendicular to the ground. HEPA can be installed and removed individually, easy to maintain and replace. At the same time, its settings take into account the convenience of efficient leak testing (PAO testing ) . HEPA filters will be validated according to the PAO leak test method recommended by ISO14644-3 .

Diffuser​

The diffuser is protected by a 1.2mm 304 brushed stainless steel frame.
Its frame is flush with the outlet surface of the weighing hood.
The diffuser is water washable.
It can significantly improve the uniformity of the air outlet.
Significantly improve air uniformity, Light transmission, Ventilation, Impermeable

socket

Adopts the socket type of Panasonic or Rolange.
The socket type adopts the module form.
The module has a rich variety, which can meet the 220 or 380 socket, and maintain the consistency of appearance.
Its sealing level reaches IP55 sealing level.

PLC control system

Touch screen SIEMENS-SMART-700 series products Adopt expandable CPU224 module (including storage system) Adopt SIEMENS (EM231, EM235 module) Buttons and related electrical components use SCHNEIDER Brand components.

socket

Design illumination: working surface ≥ 300Lux.
Lamps: T5-bracket lamp with cover.
Location: Above the diffuser of the weighing hood.
Light passes through the flow-leveling membrane.

Buttons And Alarm System​

Emergency stop button: When an emergency occurs, manually press the emergency stop button.
POWER switch: Control the main power switch of the whole system. The corresponding red indicator light is on when the machine is powered on.
Audible alarm - Preliminary filter alarm - When the pressure difference of the primary filter exceeds the set value, a light alarm will be issued.
Audible alarm - Medium-efficiency filter alarm - when the medium-efficiency pressure difference exceeds the set value, a light alarm will be issued.
Audible alarm - High-efficiency filter alarm - When the pressure difference of the high-efficiency filter exceeds the set value, a light alarm will be issued.
Audible alarm - Wind speed alarm - When the wind speed and pressure difference exceed the set value, a light alarm will be issued.

Password Setting​

Three-level password design:
Level 1 password (Operator, User): operator operation;
Level 2 password (Administrator): Modify parameters, pressure difference, wind speed, and other alarm values;
Level 3 password (System): top-level settings, set level 1 and level 2 user names and passwords;
System permission design:
The highest authority can manage the user names and passwords of all users, and can perform all operations on the system at the same time;
Second-level permissions can control, monitor, or modify parameters; The lowest authority can only monitor and control the start and stop of fans and lighting, and cannot modify parameters.

Why choose us?

Youth Tech is a leading manufacturer of cleanroom equipment and supplies, with a focus on meeting the requirements of ISO-14644/GMP standards. We understand the importance of maintaining a clean and controlled environment in industries such as pharmaceuticals, medical devices, and semiconductors, and we are dedicated to providing high-quality products that meet these requirements.

Our cleanroom equipment is designed to meet the strict requirements of different levels of A/B/C environments, and is tested to ensure that it meets the required standards for air-suspended particle levels. We use the latest technology and manufacturing techniques to ensure that our equipment is free from corners, bumps, and gaps, which can harbor particles and contaminants.

In addition to our commitment to quality and performance, we also value our customers and strive to provide them with the best possible service. We are dedicated to building long-term, mutually beneficial relationships with our customers, and we are always available to answer any questions or concerns they may have.

Choose Youth Tech for cleanroom equipment and supplies that are reliable, effective, and backed by our commitment to customer service. We look forward to working with you to maintain a clean and controlled environment in your facility.

Our Add-On Serviecs:

Youth Tech offers a range of add-on services and customization options to enhance the performance and functionality of our cleanroom equipment. Our add-on services include the option to pair our equipment with intercom systems, emergency buttons, alarms, and UV lamps, to ensure that your cleanroom is equipped to handle any situation.

We also offer a range of lock types and pressing devices to suit your specific needs, and our handle shapes are designed for maximum comfort and ease of use. Additionally, our equipment is equipped with touch screens, LCD control panels, and buttons, which allow you to easily monitor and control the air velocity, blower/UV light running hour, start/stop, and door open/closed settings.

At Youth Tech, we understand that every cleanroom is unique, and we are dedicated to providing customization options that allow our customers to tailor our equipment to their specific needs. Contact us today to learn more about our add-on services and customization options.
