2. Fan Filter Unit – FFU

What’s the FFU for Cleanroom?

FFU stands for Fan Filter Unit, and it is a critical component used in cleanrooms to maintain cleanliness and control airborne contaminants. An FFU is a self-contained device that combines a fan and a filter into a single unit. Its primary function is to draw in ambient air, filter it through high-quality filters, and supply clean and filtered air evenly throughout the cleanroom space.

The FFU plays a crucial role in achieving and sustaining the desired air quality levels in cleanrooms. By continuously supplying clean air, it helps prevent the accumulation of particles, microbes, and other airborne contaminants that can compromise sensitive processes, products, or research outcomes. The filtered air is distributed uniformly, ensuring a controlled environment and minimizing the risk of localized contamination.

Benefits of FFU for Cleanrooms

Enhanced Air Filtration: With advanced filtration systems, FFUs effectively capture and remove particles, microbes, and other airborne contaminants, ensuring superior air quality within the cleanroom.

Uniform Air Distribution: FFUs distribute filtered air evenly throughout the cleanroom space, minimizing the risk of localized contamination and creating a controlled environment conducive to sensitive operations.

Energy Efficiency and Cost Savings: FFUs are designed to maximize energy efficiency, reducing operational costs while maintaining optimal air quality. The integration of efficient fans, adjustable speed controls, and low-pressure drop filters contributes to energy savings.

Easy Installation and Maintenance: FFUs are easy to install, enabling swift integration into existing cleanroom infrastructures. Their modular design simplifies maintenance tasks such as filter replacement, minimizing downtime and optimizing productivity.

Customization Options: YOUTH offers a range of customizable FFUs to cater to specific cleanroom requirements. From varying sizes and airflow rates to different filter options, these units can be tailored to suit diverse applications.

Youth's FFU Performance and technical advantages

  1. Implement cutting-edge, internationally recognized fan/motor technology that combines superior quality, energy efficiency, and whisper-quiet operation.
    • Utilize high-efficiency outer rotor or inner rotor direct drive motors.
    • Choose between AC or DC brushless motors.
    • Optimize the centrifugal impeller design for high efficiency and ensure dynamic balance up to the ISO1940, G2.5 standard.

2. Enhance efficiency and reduce noise through the advanced internal diversion structure design of the FFU (Fan Filter Unit) box.

    • Conduct noise analysis and implement measures for performance improvement.
Vibration Analysis Chart -01
Vibration Analysis Chart - 02
100% leak detection before leaving the factory

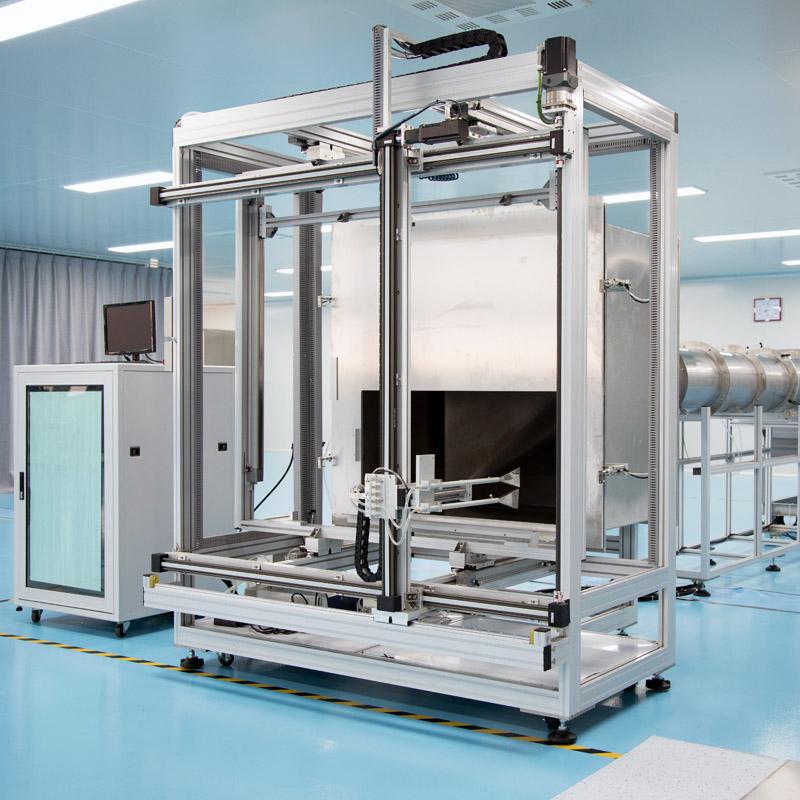

mpps detection equipment

3. Utilize high-efficiency, low-resistance filter materials from reputable international brands, such as glass fiber and PTFE.

  • Ensure the filters are manufactured using imported origami machines in a controlled environment of constant temperature and humidity.
  • Conduct 100% leak detection and MPPS sampling inspection before the filters leave the factory.

4. Enhance efficiency and reduce noise through the advanced internal diversion structure design of the FFU (Fan Filter Unit) box.

    • Conduct noise analysis and implement measures for performance improvement.
    • Present the results in a vibration analysis chart.

5. Incorporate an intelligent FFU control system that enables single and group monitoring.

  • Offer flexible control methods and monitoring systems tailored to specific requirements, from small-scale applications to large-scale integrated systems.

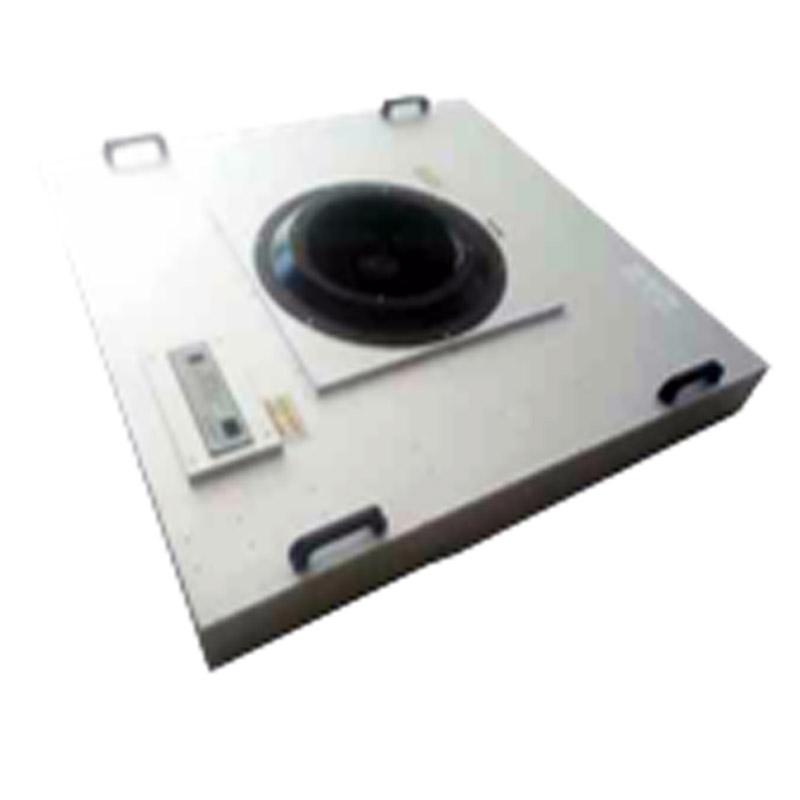

Snap-on FFU
Ultra-thin FFU size

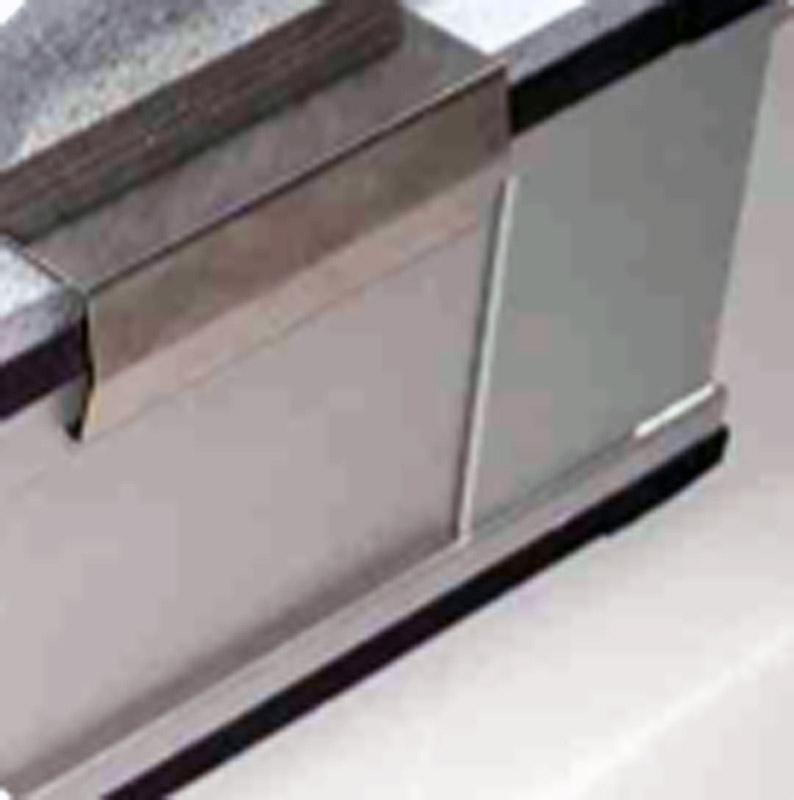

Filter housing Integral FFU
With tube FFU
Dual Fan FFU

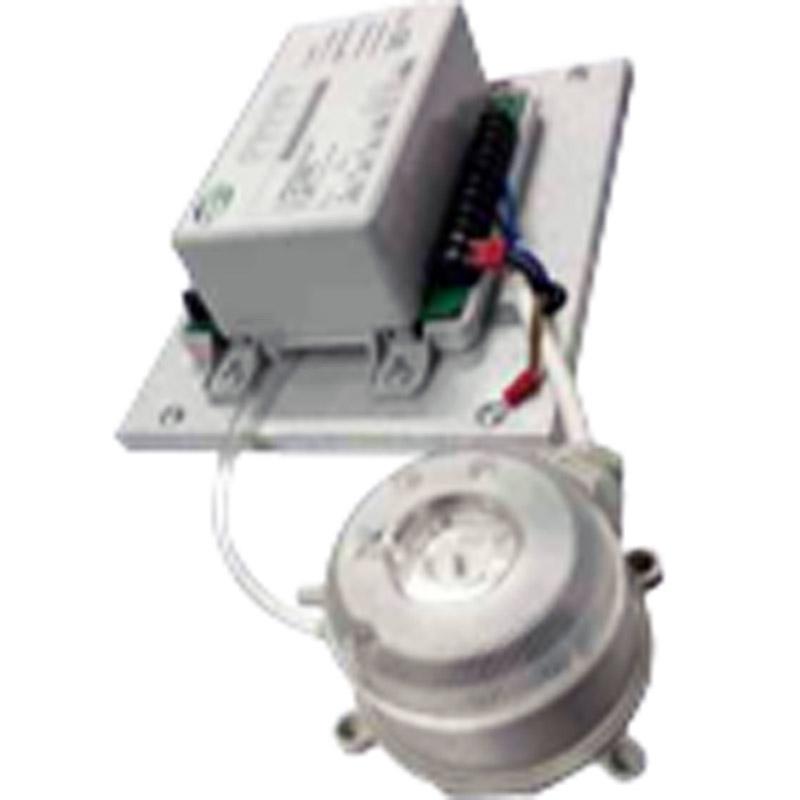

"Pressure differential" alarm switch indication
Operation fault indicator light of the control box

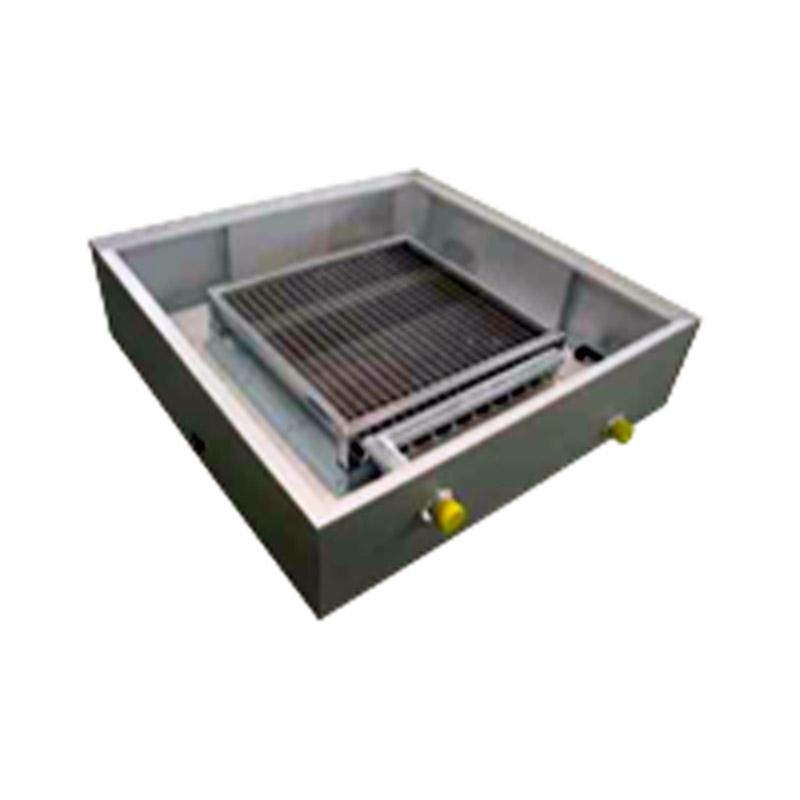

6. Provide customizable chemical filtration solutions based on customer requirements, taking into account the specific processes, substances, and concentrations of chemical pollutants.
Achieve a harmonious integration of cleanliness control and gas pollution control.
Effectively eliminate acid gases like SOx, NOx, HF, HCl, acetic acid, alkaline gases like NH3, amines, VOCs such as siloxane, toluene, DOP, PGMEA, and dopants like P and B.

The performance parameters of YOUTH's FFU

Conventional FFU Size

Test conditions: wind speed = 0.45m/s, HEPA filter thickness = 70mm, ESP = 100Pa;
The height of the air inlet circle of 25mm~35mm should be added to the thickness of the above box.

Ultra-thin FFU size

Control system diagram of iFan 1 AC FFU

Control system diagram of iFan 1 AC FFU

Features and Advantages:

Robust Monitoring System:

  • Utilizes RS-485 as the communication interface for enhanced stability and resistance to noise.
  • Intelligent communication module and data retransmission mechanism enable faster and more reliable network control.

Communication Quality Monitoring:

  • Real-time monitoring with communication quality tools facilitates the detection of abnormal online quality, aiding in construction and maintenance processes.

Cloud-Based Monitoring:

  • Users can conveniently monitor the system through cloud-based monitoring via Ethernet.

Multiple Screen Displays:

  • Supports the display of multiple screens for improved visualization and flexibility.

User Customization:

  • Users have the ability to add fans and background images according to their preferences.

Open Communication Format:

  • Adopts the Modbus architecture as an open communication format to facilitate communication with underlying devices.
  • Offers two-layer architecture for communication with the main controller and power driver.
  • Provides single-layer architecture for direct communication with the power driver.

Graphical Human-Machine Interface (HMI) Monitoring:

  • Features intuitive graphical control symbols for easy identification and user-friendly operation.



The control interface includes:



History Trend Graph – Stores operation records for analysis and reference.

Flat Floor Management – Provides an overview of all FFU settings, operating status, and speed changes through a flat floor interface.

Alarm Management – Includes a system log, short message alarms, and real-time alarm system for efficient monitoring.

Data Management – Offers functionalities such as account management, rights management, data backup and management, database maintenance, and date range data deletion.

Specifications and Functions – Allows for speed setting, reading of actual speed, and displays alarm node error codes.

Control system diagram of iFan 5 DC FFU

Control system diagram of iFan 5 DC FFU

Features and Advantages:

Multi-Point Acquisition and Centralized Control:

  • The control system employs a multi-point acquisition and centralized control principle.
  • LSI data collectors can be added or expanded to control up to 60,000 FFUs.
  • Each LSI data collector has eight connection channels, with each channel capable of controlling up to 31 FFUs.

Comprehensive Monitoring and Control:

  • Monitors the running status and start-stop control of each FFU.
  • Collects status and control signals from each FFU to the LSI data collector.
  • Displays FFU running status and enables start-stop control through the iFan5 Control System software on the computer.
  • Provides fault alarm signals to identify and troubleshoot specific FFUs.

Visual Status Indication:

  • Utilizes color-coded indicators to reflect FFU status (operation/stop/fault/speed/maintenance).
  • Enables operators to quickly and accurately identify fault points.

Accurate Fault Diagnosis:

  • Detects various fault conditions (overcurrent/overvoltage/undervoltage/overheating/fan lock/storage fault/motor cable open circuit/speed tolerance/overload/start fault/input fault).
  • Presents specific fault codes for precise troubleshooting, reducing maintenance time.

Persistent Speed Settings:

  • Allows for individual or group speed settings for FFUs.
  • Control memory of iFan5 retains the speed settings even when the computer or power is turned off, ensuring uninterrupted FFU operation.

Maintenance Mode and Fault Identification:

  • Sets faulty FFUs to maintenance mode and clears alarms for easy identification.
  • Provides a clear system overview for prompt repairs.

Simultaneous Control of Different Brands:

  • Capable of controlling EBM and Fuji Electric units simultaneously.

Control Interface:

Display Monitoring Function:

  • Shows the number and status of connected/faulty/active units and connection status of each FFU system.
  • Graphically displays floors/areas/groups.
  • Uses alternate colors to indicate run/stop/fault/speed/maintenance status.
  • Displays FFU speed and position based on the layout.

Control Function:

  • From the FFU list display screen, allows speed adjustment and start-stop operations for individual, multiple, groups, areas, floors, or all FFUs.
  • Enables convenient speed setting changes.

Alarm/Record Display:

  • Displays up to 10,000 alarm histories, with data storage for up to 3 years.
  • Stores and displays up to 3,000 operation histories with the associated user name.
  • Provides audible alarm sound for different failure levels.

Setting Function:

  • Registers/deletes users with various privileges (administrator, operator) and allows password setting/change.

Linkage Control Function:

  • Supports linkage with UPS power failure signals to safely shut down the PC.

Additional Functions:

  • “FFU notification stop” temporarily removes FFUs from monitoring.

Control system diagram of iFan 7 DC FFU

Control system diagram of iFan 7 DC FFU

Server/Hub Control Mode:

  • Each hub can connect up to 8 groups of FFUs, allowing control of a maximum of 248 FFUs (31 x 8).
  • One port in each server can connect 9 hubs in series, enabling control of 1,953 FFUs (9 x 7 x 31).
  • Each server consists of 4 ports and can control a total of 7,812 FFUs (4 x 1,953).
  • The number of servers that can be connected is limitless.

Features and Advantages:



iFan 7L Super-Large Control System:

  • The system utilizes servers and hubs for connectivity.
  • Each server can connect to 9 hubs, providing control over 7,812 FFUs.
  • Infinite expansion is possible by adding more servers.
  • The system can currently control up to 45,000 FFUs.

Visual Fault Identification:

  • The iFan 7L FFU control system integrates the field equipment plan with the control system.
  • Different colors are used to indicate the operating status of FFUs, facilitating accurate fault pinpointing.

Persistent Speed Settings:

  • iFan 7L allows for speed adjustment of individual or all FFUs.
  • The control memory of each FFU retains the set parameters, ensuring the preservation of settings even after computer or power shutdown, without affecting normal FFU operation.

Multi-Point Acquisition and Centralized Control:

  • The iFan 7 FFU control system follows the principle of multi-point acquisition and centralized control.
  • The number of hubs can be selected based on grouping requirements.
  • Each hub can control up to 248 FFUs.
  • Additional hubs can be added for expansion as needed.

Comprehensive Monitoring and Control:

  • The iFan 7 FFU control system monitors the running status and start-stop control of each FFU.
  • Status and control signals pass through the hub and RS485 communication.
  • The iFan7 control system displays FFU running status and enables start-stop control via the supporting software.
  • Fault alarm signals assist in identifying and troubleshooting specific FFUs.

Control Interface:

  • Error List: Displays running status and fault status.
  • Flat Floor Management: Provides an intuitive overview of FFU settings, operating status, and speed changes.
  • Alarm: Real-time alarm system.
  • User Manager: Allows for account settings and authority management.
  • Fan Management: Enables speed adjustment, reading of actual speed, alarm node identification, and error code display.
  • Automatic Switch Machine Setting: Allows users to define time-based fan speed adjustments, reducing energy losses within the fan system.


Applications of FFU in Cleanroom Environments

FFUs find extensive applications across various industries that demand stringent cleanroom standards. Let’s explore some of these key sectors:

  • Pharmaceutical Industry: In pharmaceutical manufacturing, where sterility is crucial, FFUs play a vital role. They provide the necessary air filtration and airflow control to prevent contamination during drug production, packaging, and storage.
  • Electronics Manufacturing: Cleanrooms are essential for electronic component manufacturing, as even the tiniest particle can cause device failure. FFUs ensure a clean and controlled environment, protecting sensitive electronic components from dust, static electricity, and other contaminants.
  • Biotechnology and Research Facilities: Laboratories and research facilities involved in biotechnology, life sciences, and genetic research rely on FFUs to maintain clean and controlled environments. These units safeguard experiments, prevent cross-contamination, and maintain the integrity of research outcomes.
  • Automotive and Aerospace Sectors: Cleanrooms are essential in automotive and aerospace industries for tasks such as precision assembly, painting, and testing. FFUs eliminate airborne particles and ensure that critical components remain free from contaminants during manufacturing and assembly processes.
  • Food Processing and Packaging: In food processing and packaging, maintaining high levels of cleanliness is paramount to ensure product safety and quality. FFUs provide clean air in areas where food is handled, processed, and packaged, reducing the risk of contamination and ensuring compliance with food safety regulations.

Factors to Consider When Choosing FFU for Cleanrooms

When selecting an FFU for your cleanroom, several factors should be taken into account:

  • Airflow Rate and Cleanliness Class: Determine the required airflow rate based on the size and specific needs of your cleanroom. Additionally, consider the desired cleanliness class to ensure that the FFU meets the necessary air quality standards.
  • Noise Levels: Evaluate the noise levels generated by the FFU, as excessive noise can disrupt cleanroom operations and compromise the working environment. Look for FFUs that offer low noise levels without compromising performance.
  • Energy Consumption: Opt for energy-efficient FFUs that consume minimal power while delivering consistent performance. This not only reduces operational costs but also aligns with sustainable practices.
  • Filter Efficiency and Lifespan: Assess the filter efficiency and lifespan of the FFU. High-efficiency filters with longer lifespans minimize maintenance requirements and ensure continuous protection against contaminants.
  • Compatibility with Cleanroom Standards: Ensure that the FFU complies with industry cleanroom standards and regulations. This includes factors such as material compatibility, certifications, and adherence to international cleanroom guidelines.


Maintenance and Upkeep of FFU in Cleanrooms

To maximize the performance and longevity of your FFUs, proper maintenance is essential. Here are some key maintenance practices:

  • Regular Filter Replacement: Replace filters as recommended by the manufacturer or based on the specific requirements of your cleanroom. This ensures optimal filtration efficiency and prevents contaminants from bypassing the filters.
  • Cleaning and Disinfection: Regularly clean and disinfect the FFUs and their surrounding areas to prevent the buildup of dust, particles, and microorganisms. Follow recommended cleaning protocols to maintain cleanliness and prevent cross-contamination.
  • Troubleshooting Common Issues: Familiarize yourself with common issues that may arise with FFUs, such as fan malfunctions or airflow disruptions. Develop troubleshooting protocols to address these issues promptly and efficiently.
  • Professional Servicing and Repairs: Engage professional cleanroom services for periodic inspections, servicing, and repairs of your FFUs. This ensures that any technical issues are resolved by experienced technicians, minimizing downtime and maintaining optimal performance.

FAQs:

What is an FFU, and how does it contribute to maintaining cleanliness in cleanrooms?

An FFU, or Fan Filter Unit, is a compact device that combines a fan and a filter to supply clean and filtered air in cleanrooms. It ensures the removal of airborne contaminants, maintaining the desired cleanliness levels.

How does an FFU work?

FFUs draw in ambient air through a fan, which then passes through a high-grade filter, effectively removing particles and contaminants. The filtered air is then evenly distributed throughout the cleanroom, ensuring a controlled environment.

Can FFUs be customized to suit different cleanroom requirements?

Yes, FFUs can be customized to meet specific cleanroom needs. YOUTH offers a range of customizable options, including varying sizes, airflow rates, and filter options, allowing you to tailor the FFUs to your unique cleanroom setup.

What are the energy efficiency benefits of FFUs?

FFUs are designed to maximize energy efficiency. They incorporate features such as efficient fans, adjustable speed controls, and low-pressure drop filters, resulting in reduced energy consumption and cost savings without compromising air quality.

How do FFUs contribute to uniform air distribution in cleanrooms?

FFUs are designed to distribute filtered air uniformly across the cleanroom space. This helps prevent localized contamination and ensures that all areas receive the same level of clean air, creating a controlled environment conducive to sensitive operations.

Are FFUs suitable for cleanrooms in the pharmaceutical industry?

Absolutely. In the pharmaceutical industry, where maintaining sterility is crucial, FFUs play a vital role. They provide the necessary air filtration and airflow control to prevent contamination during drug production, packaging, and storage.

Can FFUs be used in electronics manufacturing cleanrooms?

Yes, FFUs are essential in electronics manufacturing cleanrooms. They help protect sensitive electronic components from dust, static electricity, and other contaminants, ensuring optimal product quality and reliability.

Do FFUs have applications in biotechnology and research facilities?

Absolutely. Laboratories and research facilities in biotechnology and life sciences heavily rely on FFUs. These units maintain clean and controlled environments, preventing cross-contamination and safeguarding the integrity of research outcomes.

How do FFUs contribute to cleanliness in automotive and aerospace cleanrooms?

Cleanrooms in the automotive and aerospace sectors require high cleanliness levels. FFUs eliminate airborne particles, ensuring critical components remain free from contaminants during precision assembly, painting, and testing processes.

Can FFUs be used in the food processing and packaging industry?

Yes, FFUs find applications in the food processing and packaging industry. They provide clean air in areas where food is handled, processed, and packaged, reducing the risk of contamination and ensuring compliance with food safety regulations.

What factors should be considered when choosing FFUs for a cleanroom?

When selecting FFUs, consider factors such as airflow rate and cleanliness class requirements, noise levels, energy consumption, filter efficiency and lifespan, and compatibility with cleanroom standards and regulations.

How often should FFU filters be replaced?

Filter replacement frequency depends on various factors, including the specific cleanroom environment and the type of contaminants present. It is recommended to follow the manufacturer’s guidelines and replace filters accordingly to maintain optimal filtration efficiency and air quality.
