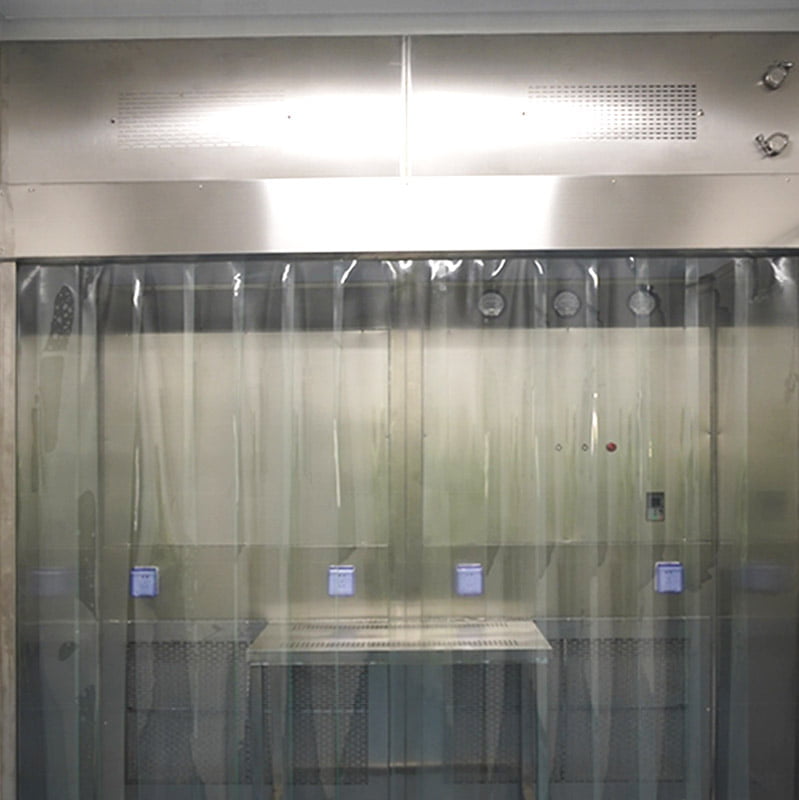

What Are The Cleanroom Weighing Booth?
A cleanroom weighing booth, also known as a cleanroom balance enclosure or weighing cabinet, is a specialized enclosure designed to provide a clean and controlled environment for weighing and measuring operations in cleanroom or controlled environments. It is primarily used to protect sensitive samples, materials, or equipment from external contaminants that could affect measurement accuracy or compromise product quality.
Key features and characteristics of cleanroom weighing booths typically include:
- Contamination Control: Cleanroom weighing booths are designed to minimize the risk of contamination during weighing operations. The enclosure creates a physical barrier that shields the weighing area from airborne particles, microorganisms, and other potential sources of contamination.
- Airflow and Filtration: These booths incorporate high-efficiency particulate air (HEPA) filters and laminar airflow to provide a clean air environment. HEPA filters capture and remove airborne particles, while laminar airflow ensures a controlled and unidirectional airflow over the weighing surface, sweeping away any contaminants.
- Work Surface: Cleanroom weighing booths feature a dedicated work surface for performing weighing operations. The work surface is typically made of materials such as stainless steel or other easy-to-clean materials, ensuring minimal particle shedding and facilitating easy cleaning and decontamination.
- Ergonomic Design: Cleanroom weighing booths often have an ergonomic design that allows for comfortable and efficient weighing operations. They may include features such as adjustable height work surfaces, footrests, or operator-friendly control panels to enhance operator comfort and productivity.
- Lighting and Visibility: Adequate lighting is essential for accurate weighing. Cleanroom weighing booths are equipped with proper lighting systems to ensure clear visibility of the weighing area, minimizing the chance of errors or misinterpretations during measurements.
- Monitoring and Control: Cleanroom weighing booths may have monitoring and control systems to maintain and regulate environmental conditions. These systems can include sensors to measure parameters such as airflow velocity, temperature, humidity, and alarms to alert operators of deviations from the desired conditions.
- Static Control: Some cleanroom weighing booths incorporate static control features to minimize the buildup and discharge of static electricity, which can adversely affect weighing accuracy or potentially damage sensitive materials or equipment.
- Compatibility with Weighing Equipment: Cleanroom weighing booths are designed to accommodate various types of weighing equipment, such as analytical balances or precision scales. They often have features such as anti-vibration mounts or provisions for integrating the weighing equipment into the booth to minimize external disturbances that could affect measurements.
Cleanroom weighing booths provide a controlled and clean environment for precise weighing operations, ensuring accurate measurements, protecting samples or materials from contamination, and maintaining product quality. These booths are commonly used in industries such as pharmaceuticals, biotechnology, electronics, and research laboratories, where precise measurements and contamination control are critical.
Benefits of Using a Cleanroom Weighing Booth
Cleanroom Weighing Booths offer numerous advantages, including protection against contamination, improved accuracy, time and cost savings, enhanced operator safety, and improved regulatory compliance.
- Firstly, a Cleanroom Weighing Booth provides a contamination-free environment. It prevents airborne particles and microorganisms from entering the workspace, ensuring that the weighing process is clean and accurate.
- Secondly, it improves weighing accuracy by eliminating external variables that may affect the measurement. The airflow control system inside the booth helps reduce air turbulence, making the weighing process more precise and consistent.
- Thirdly, Cleanroom Weighing Booths can save time and cost by reducing the need for rework and minimizing waste. The clean environment eliminates the possibility of contamination, reducing the need for costly and time-consuming remediation.
- Fourthly, it enhances operator safety by minimizing exposure to hazardous substances. Cleanroom Weighing Booths provide a physical barrier that protects operators from hazardous substances and prevents cross-contamination.
- Lastly, Cleanroom Weighing Booths help ensure regulatory compliance by meeting industry standards and guidelines such as ISO 14644 and FDA guidelines.
Types of Cleanroom Weighing Booths
There are several types of Cleanroom Weighing Booths, including horizontal laminar flow, vertical laminar flow, reverse laminar flow, and containment barrier isolator weighing booths.
- Horizontal Laminar Flow Weighing Booths use a horizontal airflow system that directs filtered air from the back wall to the front of the booth. The laminar flow provides a clean, particle-free environment, ideal for weighing powders and other fine
- Vertical Laminar Flow Weighing Booths use a vertical airflow system that directs filtered air from the top of the booth to the bottom. The airflow removes particles and microorganisms from the work area, making it suitable for weighing items that generate dust or vapors.
- Reverse Laminar Flow Weighing Booths use a reverse airflow system that directs filtered air from the front of the booth to the back. The reverse airflow helps contain hazardous materials and prevent their escape into the environment.
- Containment Barrier Isolator Weighing Booths use a physical barrier to isolate the operator and the materials being weighed. The isolator provides an enclosed environment that protects the operator from exposure to hazardous substances and prevents contamination.
Applications of Cleanroom Weighing Booth
Cleanroom Weighing Booths have a wide range of applications across various industries, including pharmaceuticals, biotechnology, food and beverage, research and development, and microelectronics.
In the pharmaceutical industry, Cleanroom Weighing Booths are used to weigh active pharmaceutical ingredients (APIs), excipients, and other materials used in drug formulation. The clean environment ensures that the materials are free from contamination, ensuring product quality and safety.
In the biotechnology industry, Cleanroom Weighing Booths are used to weigh and handle cell cultures and other biological materials. The clean environment prevents contamination and ensures that the materials remain viable.
In the food and beverage industry, Cleanroom Weighing Booths are used to weigh ingredients for food and beverage production. The clean environment ensures that the ingredients are free from contaminants and meets industry standards.
In research and development, Cleanroom Weighing Booths are used to weigh chemicals, powders, and other materials used in experiments. The clean environment ensures that the results are accurate and reproducible.
In the microelectronics industry, Cleanroom Weighing Booths are used to weigh and handle sensitive electronic components. The clean environment prevents contamination and ensures that the components function correctly.
Cleanroom Weighing Booth Maintenance
To maintain the effectiveness of a Cleanroom Weighing Booth, regular maintenance is essential. This includes regular cleaning and disinfection, filter replacement, calibration and validation, and monitoring and recording data.
Regular cleaning and disinfection ensure that the booth remains clean and free from contaminants. The frequency of cleaning depends on the level of contamination and usage.
Filter replacement is important to ensure that the booth’s filters remain effective in removing particles and microorganisms from the air. The frequency of filter replacement depends on the level of usage and the environment.
Calibration and validation ensure that the booth remains accurate and meets industry standards. The frequency of calibration and validation depends on the level of usage and the industry requirements.
Monitoring and recording data is important to track the booth’s performance and detect any deviations from the established standards. This data can be used to identify and correct any issues that may arise and to demonstrate compliance with industry regulations.
what is different between the Cleanroom Dispensing booth, Sampling booth, and Weighing booth?
A Cleanroom Dispensing booth is a type of cleanroom equipment that is used for the dispensing or mixing of materials in a controlled environment. It typically consists of a booth or enclosure with a built-in air filtration system that creates a flow of clean, filtered air over the work area. This helps to prevent contamination of the materials being dispensed or mixed. Cleanroom Dispensing booths are commonly used in industries such as pharmaceuticals, where precision and cleanliness are critical.
A sampling booth, on the other hand, is cleanroom equipment that is used for the collection of samples in a controlled environment. It typically consists of a booth or enclosure with a built-in air filtration system that creates a flow of clean, filtered air over the work area. This helps to prevent contamination of the samples being collected. Sampling booths are commonly used in industries such as pharmaceuticals and biotech, where the collection of clean and uncontaminated samples is essential.
A weighing booth, like the other two types of cleanroom equipment, is a booth or enclosure with a built-in air filtration system that is used for the weighing of materials in a controlled environment. It is designed to prevent contamination of the materials being weighed and to provide a stable and accurate weighing environment. Weighing booths are commonly used in industries such as pharmaceuticals and biotech, where precision and cleanliness are critical.
FAQs:
What materials can be weighed in a Cleanroom Weighing Booth?
Cleanroom Weighing Booths can be used to weigh a variety of materials, including powders, chemicals, and pharmaceuticals.
What are the benefits of using a Cleanroom Weighing Booth?
The benefits of using a Cleanroom Weighing Booth include maintaining a clean and controlled environment, preventing contamination, ensuring product quality, and protecting workers from hazardous materials.
What are the industry standards for Cleanroom Weighing Booths?
Industry standards for Cleanroom Weighing Booths include ISO 14644, which provides guidelines for cleanroom design and operation, and GMP (Good Manufacturing Practice), which outlines the requirements for the production of pharmaceuticals and other medical products.
How often should a Cleanroom Weighing Booth be cleaned?
The frequency of cleaning for a Cleanroom Weighing Booth depends on the level of use and the industry requirements. It is important to follow a regular cleaning schedule to prevent contamination and maintain product quality.
Can a Cleanroom Weighing Booth be customized to fit specific requirements?
Yes, Cleanroom Weighing Booths can be customized to fit specific requirements, such as size, material, and level of contamination control.
Is there a specific type of filter used in Cleanroom Weighing Booths?
The type of filter used in Cleanroom Weighing Booths depends on the level of contamination control required. HEPA (High-Efficiency Particulate Air) filters are commonly used to filter out particles as small as 0.3 microns.
How long does it take to install a Cleanroom Weighing Booth?
The installation time for a Cleanroom Weighing Booth varies depending on the size and complexity of the booth. On average, installation can take several weeks to a few months.
What safety features are included in Cleanroom Weighing Booths?
Safety features in Cleanroom Weighing Booths include HEPA filters, interlock systems, and alarms to alert workers of any issues or malfunctions.
Are there regulations that govern the use of Cleanroom Weighing Booths?
Yes, there are regulations that govern the use of Cleanroom Weighing Booths, including FDA regulations for the production of pharmaceuticals and ISO 14644 guidelines for cleanroom operation.
Can Cleanroom Weighing Booths be used for hazardous materials?
Yes, Cleanroom Weighing Booths can be used to weigh hazardous materials, such as chemicals and radioactive materials. The booth is designed to protect workers from exposure and prevent contamination.
Can a Cleanroom Weighing Booth be used for both weighing and dispensing?
Yes, Cleanroom Weighing Booths can be used for both weighing and dispensing, depending on the industry requirements and level of contamination control needed.
Can a Cleanroom Weighing Booth be moved to a different location?
Yes, Cleanroom Weighing Booths can be disassembled and moved to a different location if needed. However, it is important to follow proper procedures to ensure the booth is not damaged during the move.
How long does a Cleanroom Weighing Booth last?
The lifespan of a Cleanroom Weighing Booth depends on the level of use and maintenance. With proper maintenance, a Cleanroom Weighing Booth can last for many years.
How to choose a weighing booth for your cleanroom projects?
There are a few key factors to consider when choosing a weighing booth for your cleanroom projects:
- Size and capacity: Determine the size of the space you need to enclose and the level of cleanliness required (e.g. ISO Class 5, 6, 7). This will help you determine the appropriate size and number of weighing booth units needed.
- Contamination control: Look for a weighing booth with strong contamination control capabilities, such as high-efficiency air filtration systems and positive pressure control.
- Ease of use: Choose a weighing booth that is easy for your operators to use, with clear instructions and intuitive controls.
- Accuracy and precision: Consider the accuracy and precision of the weighing booth you choose, as this is important for ensuring the accuracy of your weighing measurements.
- Maintenance requirements: Consider the ease of maintenance and availability of replacement parts for the weighing booth you choose.
- Cost: Determine your budget and look for a weighing booth that fits within it, while still meeting your needs and requirements.
It may also be helpful to consult with a cleanroom specialist or manufacturer to discuss your specific needs and get recommendations for the best weighing booth for your project.
Youth Product's Features:
Blower
The blower adopts Rosenberg blower independent wind box.
6000~1000CMH/ Set.
Centrifugal blower,lubrication-free.
Safe Wiring Mode
Complete test data
Security protection measures
HEPA Suppervised Device
The high-efficiency filter is installed behind the blower, that is, the positive pressure section, and is installed perpendicular to the ground. HEPA can be installed and removed individually, easy to maintain and replace. At the same time, its settings take into account the convenience of efficient leak testing (PAO testing ) . HEPA filters will be validated according to the PAO leak test method recommended by ISO14644-3 .
Diffuser
The diffuser is protected by a 1.2mm 304 brushed stainless steel frame.
Its frame is flush with the outlet surface of the weighing hood.
The diffuser is water washable.
It can significantly improve the uniformity of the air outlet.
Significantly improve air uniformity, Light transmission, Ventilation, Impermeable
Illumination
Adopts the socket type of Panasonic or Rolange.
The socket type adopts the module form.
The module has a rich variety, which can meet the 220 or 380 socket, and maintain the consistency of appearance.
Its sealing level reaches IP55 sealing level.
PLC control system
Touch screen SIEMENS-SMART-700 series products Adopt expandable CPU224 module (including storage system) Adopt SIEMENS (EM231, EM235 module) Buttons and related electrical components use SCHNEIDER Brand components.
socket
Design illumination: working surface ≥ 300Lux.
Lamps: T5-bracket lamp with cover.
Location: Above the diffuser of the weighing hood.
Light passes through the flow-leveling membrane.

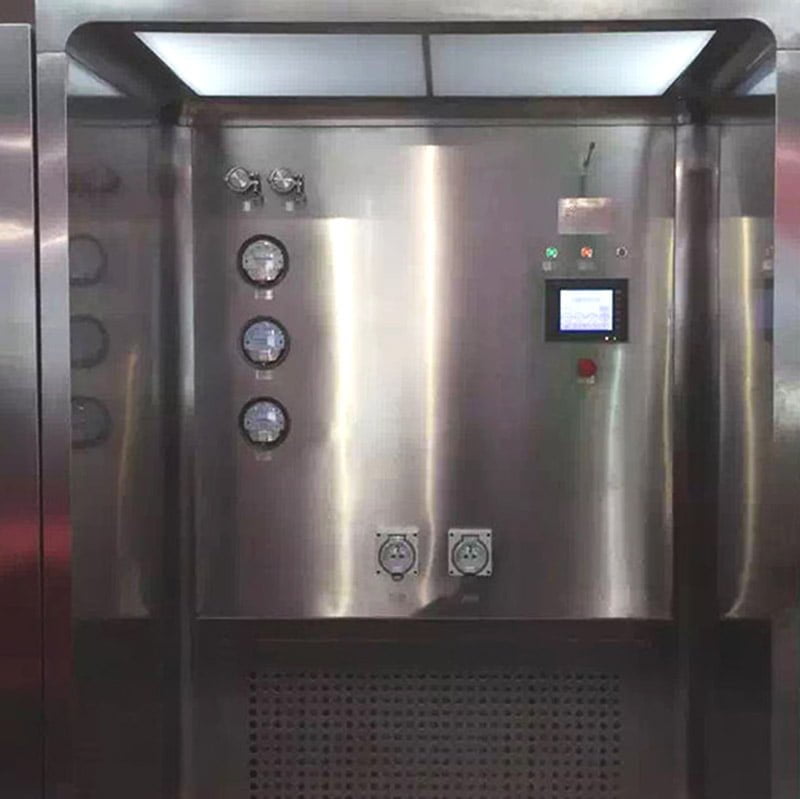

Buttons And Alarm System
Emergency stop button: When an emergency occurs, manually press the emergency stop button.
POWER switch: Control the main power switch of the whole system. The corresponding red indicator light is on when the machine is powered on.
Audible alarm - Preliminary filter alarm - When the pressure difference of the primary filter exceeds the set value, a light alarm will be issued.
Audible alarm - Medium-efficiency filter alarm - when the medium-efficiency pressure difference exceeds the set value, a light alarm will be issued.
Audible alarm - High-efficiency filter alarm - When the pressure difference of the high-efficiency filter exceeds the set value, a light alarm will be issued.
Audible alarm - Wind speed alarm - When the wind speed and pressure difference exceed the set value, a light alarm will be issued.
3-4 Access Levels
Three-level password design:
Level 1 password (Operator, User): operator operation;
Level 2 password (Administrator): Modify parameters, pressure difference, wind speed, and other alarm values;
Level 3 password (System): top-level settings, set level 1 and level 2 user names and passwords;
System permission design:
The highest authority can manage the user names and passwords of all users, and can perform all operations on the system at the same time;
Second-level permissions can control, monitor, or modify parameters;
The lowest authority can only monitor and control the start and stop of fans and lighting, and cannot modify parameters.
Audit Trial
We utilize Siemens encryption keys that conform to CFR21 requirements, ensuring that the dispensing process is traceable, verifiable, and compliant with all relevant regulations.
Online Trend
Monitoring the temperature and humidity levels, as well as the differential pressure in dispensing booths, is critical for maintaining the quality of pharmaceutical products during manufacturing and storage. This helps to ensure that pharmaceutical products are manufactured and stored under the appropriate conditions, preventing the entry of contaminants and other unwanted particles into the dispensing area, and ensuring the safety and efficacy of pharmaceutical products while complying with regulatory requirements.
Youth's Structure
The Youth products feature an integrated structure with a circular arc design that prevents detachment and eliminates any welding gaps. This results in a visually appealing and graceful appearance.
Other's Structure
Other manufacturers' products are either joined at right angles and bonded together, or attached with circular arc-shaped aluminum sheets that may detach over time, posing potential configuration hazards.
Youth's Bending
Youth products undergo full board bending and complete welding to minimize any gaps in the equipment. The filter's sealing knife edge is a crucial component that must guarantee zero leakage.
Other's Bending
Other manufacturers utilize spot welding and adhesive to seal their internal components, relying solely on glue to create a seal. This approach poses a significant risk of leakage over an extended period.
Youth's Box Design
Youth's invisible box boasts a tidy and well-maintained interior. Equipped with Rosenburg aluminum impellers, the fan is enclosed in a stainless steel box, effectively preventing the accumulation of dust. In contrast, other products' weighing chambers are prone to dust buildup over time, but our internal structure is designed for easy cleaning, ensuring hassle-free maintenance.
Other's BOX DESIGN
Other manufacturers' fans lack brand identification, are only galvanized, prone to rust, and lack a casing, with rough processing technology. The wiring is disorganized and poses a significant safety hazard due to exposed wiring ends, leading to electrical leakage. In contrast, Youth's products feature a superior fan design and organized wiring, ensuring a safe and reliable operation.
Youth's Maintenance
Youth's flow equalizing membrane design eliminates any exposed pressure blocks, making it effortless to maintain on a day-to-day basis.
Other's Maintenance
Other manufacturers' use of exposed briquettes makes daily cleaning an inconvenient task.
Youth's Magnetic Design
Youth's replacement filter features an innovative magnetic suction structure that eliminates pressure blocks and screws on the surface, ensuring a hassle-free replacement process. The punching method offers either a round or rectangular waist hole, making it easy to pull out the magnetic panel with fingers.
Other's Magnetic Design
Other manufacturers' use of external handles or buckles pales in comparison to Youth's innovative magnetic suction design, which offers superior convenience.
