04. V-Bank HEPA Air Filter

What is a Cleanroom V-Bank HEPA Air Filter?

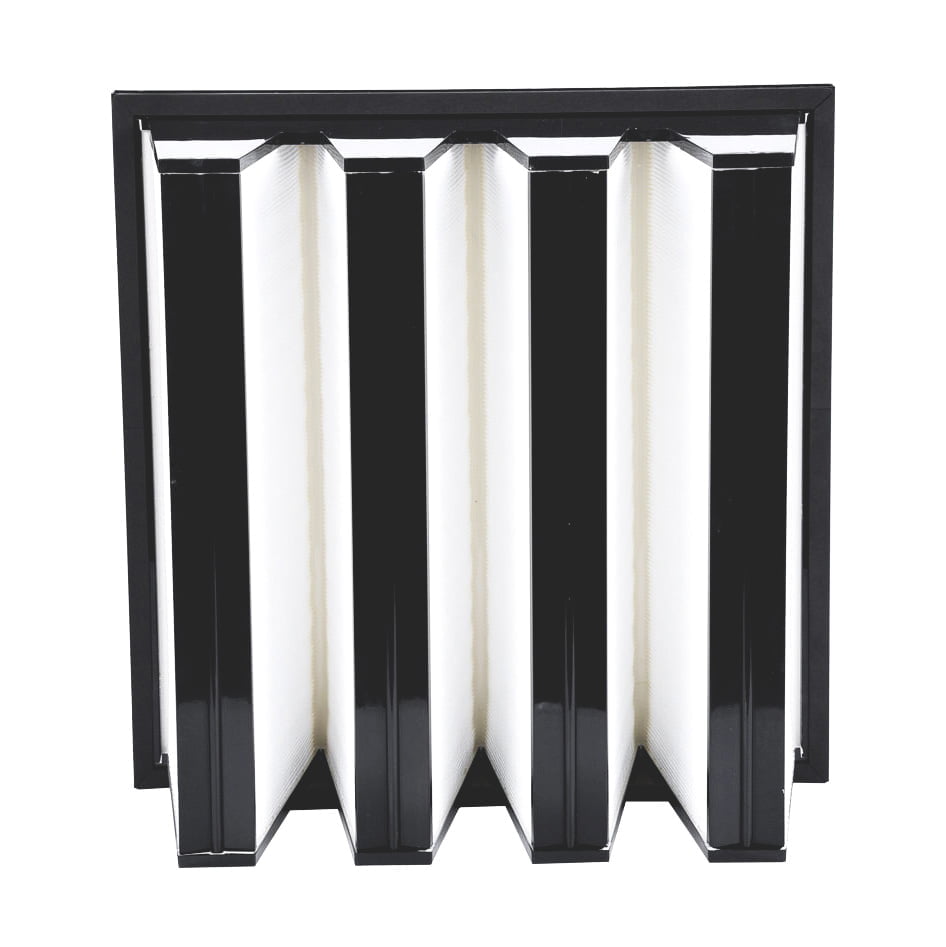

A Cleanroom V-Bank HEPA Air Filter is a high-efficiency air filter that is used to filter out very small particles from the air, achieving a filtration efficiency of 99.99%. It is called “V-Bank” due to its shape, which resembles a “V” when viewed from the side. This type of air filter is designed to fit into the air handling unit (AHU) of cleanrooms, where it removes particles as small as 0.3 microns in size from the air.

What are the benefits of Using V-Bank HEPA Air Filters?

There are several benefits of using Cleanroom V-Bank HEPA Air Filters:

  • Increased Air Quality: Cleanroom V-Bank HEPA Air Filters provide superior air quality by removing contaminants from the air, ensuring a clean and safe environment for sensitive applications.
  • Enhanced Safety: HEPA air filters remove harmful particles from the air, ensuring the safety of personnel working in cleanrooms. This is especially crucial in healthcare facilities and laboratories where people may be exposed to harmful particles or pathogens.
  • Reduced Energy Costs: Cleanroom V-Bank HEPA Air Filters have a lower resistance to air flow compared to other filters, leading to reduced energy consumption and costs.

What are Factors to Consider When Choosing V-Bank HEPA Air Filters?

When choosing Cleanroom V-Bank HEPA Air Filters, several factors should be considered:

  • Airflow Rate: The airflow rate is the amount of air that passes through the filter in a given time, usually measured in cubic feet per minute (CFM). It is important to choose a filter that can handle the required airflow rate for the cleanroom application.
  • Filter Efficiency: The filter efficiency is the percentage of particles that are removed from the air by the filter. For Cleanroom V-Bank HEPA Air Filters, the efficiency rating is 99.99%, meaning that it can remove particles as small as 0.3 microns from the air.
  • Pressure Drop: The pressure drop is the resistance to airflow that the filter creates. A higher pressure drop can result in reduced airflow and increased energy consumption, so it is important to choose a filter with a low pressure drop.
  • Filter Size: The filter size should be compatible with the dimensions of the air handling unit (AHU) in which it will be installed.

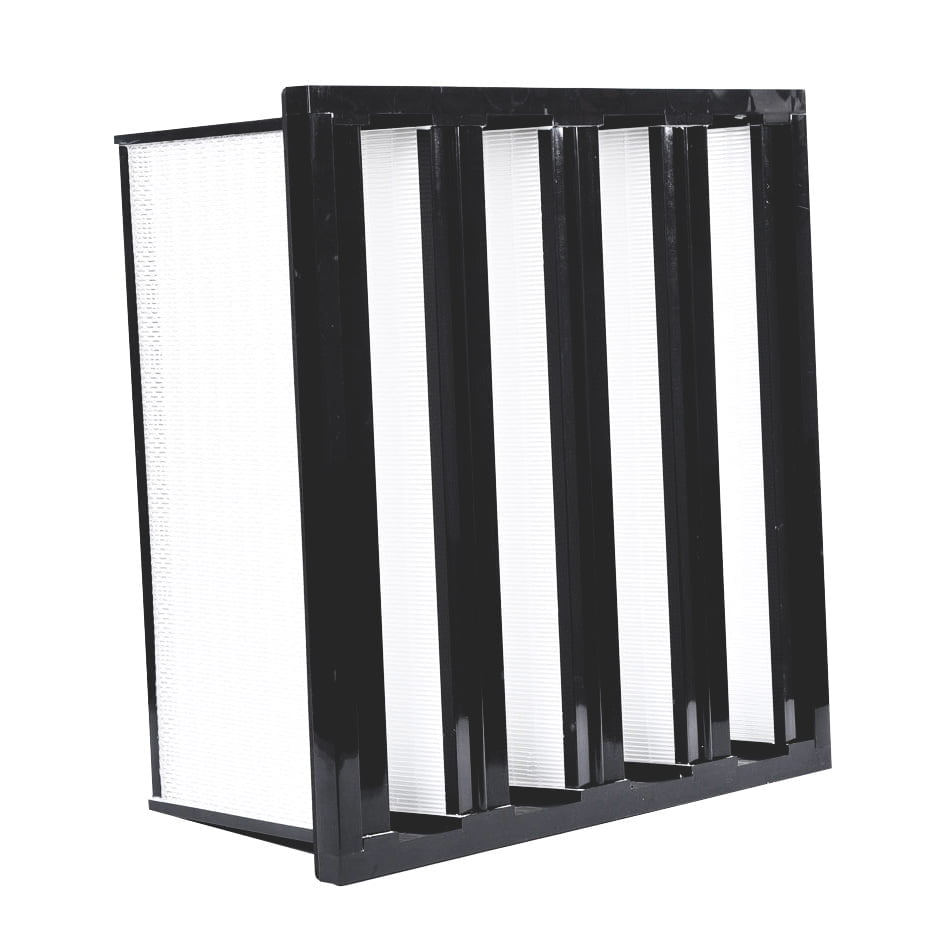

V-Bank HEPA Filter
Without Flange

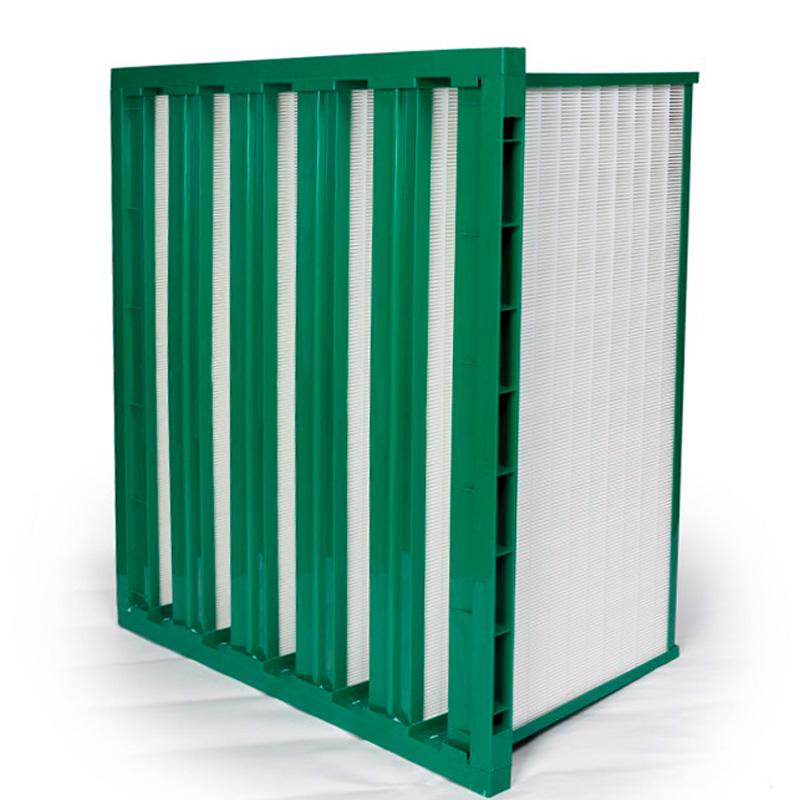

V-Bank HEPA Filter
With Flange

How to Installation and Maintenance of V-Bank HEPA Air Filters?

Proper installation and maintenance of Cleanroom V-Bank HEPA Air Filters are crucial for ensuring optimal performance and longevity of the filter. During installation, the filter should be placed in the correct position and secured properly to prevent air leakage. Regular maintenance should include checking and replacing filters when needed, cleaning the AHU and ductwork, and checking for any signs of damage or wear.

What are Applications of Cleanroom V-Bank HEPA Air Filters?

Cleanroom V-Bank HEPA Air Filters are commonly used in a variety of applications, including:

  • Healthcare Facilities: Hospitals and other healthcare facilities require extremely clean air to prevent the spread of pathogens, making Cleanroom V-Bank HEPA Air Filters an essential component of their HVAC systems.
  • Laboratories: Laboratories that deal with sensitive materials or processes, such as pharmaceuticals or electronics, require clean air to prevent contamination and ensure accurate results.
  • Semiconductor Manufacturing: The semiconductor industry requires extremely clean air to prevent contamination of the manufacturing process, and Cleanroom V-Bank HEPA Air Filters are often used to achieve this.
  • Aerospace and Defense: The aerospace and defense industries require clean air for a variety of applications, from spacecraft manufacturing to cleanrooms for assembly of precision components.
Type VS-E11 VS-H13 VS-H14
Class EN1822 E11 H13 H14
Efficiency EN1822@ MPPS [%] >95 % >99,95 % >99.995%
Initial-ΔP[Pa] at nominal airflow 125 250 250
Rec. final pressure drop [Pa] 600 600 600
Max. temp. [°C] 65° 65° 65°
Model

(E=efficiency N=V quantity)

Width Height  Depth Nominal airflow

 [m³/h]

V quantity
VS592592292-E (E11-H14) N5 592 592 292 3000 5
VS592592292-E (E11-H14) N4 490 592 292 2400 4
VS287592292-E (E11-H14) N4 287 592 292 1200 4

Product Technical Parameters:

Frame: Galvanized, Aluminum, ABS
Media: Wet-laid glass fiber
Type:3V, 4V, 5V, 6V
Efficiency:
H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
MPPS:≥95% / DOP: ≥99.9%@0.3 µm
H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
MPPS: ≥99.95% / DOP: ≥99.99%@0.3 µm
H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
MPPS:≥99.995% / DOP: ≥99.999%@0.3 µm
Separator: Hot-melt adhesives
Sealant: Polyurethane (PU)
Max. Temperature:≦ 70°C
Max. Humidity:≦ 100% RH

The filter frame provides maximum rigidity and is resistant to corrosion. Bring long-term stable filtration performance. Because V-bank HEPA filters fit into standard bag filter mounting frames, existing bag filter stages can be easily upgraded with replacement.
Learn more about Medium-Efficiency Air Filter.

Full-size standard: 24″ x 24″ (WxH), 12″ deep
Frame (head frame) material: recycled plastic
Media: Fiberglass, Synthetic, or Fiberglass/Activated Carbon

Youth's Customized Service

YOUTH provides comprehensive customization services for our clients, including options with or without flanges. This allows our international clients to select the best configuration for their specific needs and requirements.

Product Features:

Suitable for a variety of applications, including pre-filter in power generation facilities and final filters in high-tech industries. High-volume filters are widely used in repeated turbulent air flow, repeated fan shutdown, desert, and marine installations.

what are the product advantages of using cleanroom v-bank HEPA air filters?

There are several advantages to using cleanroom V-bank HEPA air filters:

  1. High efficiency: V-bank HEPA air filters have a high-efficiency rating of 99.97% at 0.3 microns, making them effective at removing contaminants from the air.
  2. Space-saving: V-bank filters are designed to be stacked, allowing for a compact installation in a cleanroom.
  3. Easy maintenance: V-bank filters can be easily removed and replaced, making maintenance quick and simple.
  4. Customizable: V-bank filters can be customized to fit the specific needs and dimensions of a cleanroom.
  5. Long lifespan: With proper maintenance, V-bank filters can have a long lifespan, reducing the need for frequent replacements.

V-bank HEPA air filters can help maintain the cleanliness and air quality of a cleanroom, making them an important component in many cleanroom environments.

FAQs

How often should Cleanroom V-Bank HEPA Air Filters be replaced?

Cleanroom V-Bank HEPA Air Filters should be replaced when the pressure drop reaches a certain level or at regular intervals, depending on the specific application and usage.

Can Cleanroom V-Bank HEPA Air Filters be cleaned and reused?

While it is possible to clean and reuse some types of air filters, Cleanroom V-Bank HEPA Air Filters are typically not designed to be cleaned and reused.

Are Cleanroom V-Bank HEPA Air Filters expensive?

Cleanroom V-Bank HEPA Air Filters can be more expensive than other types of air filters, but their benefits make them a worthwhile investment in cleanroom environments.

Are Cleanroom V-Bank HEPA Air Filters suitable for use in residential HVAC systems?

Cleanroom V-Bank HEPA Air Filters are typically not necessary for residential HVAC systems, as they are designed for high-efficiency filtration in cleanroom environments.

What is the difference between HEPA and ULPA filters?

HEPA filters are designed to remove particles as small as 0.3 microns, while ULPA filters are designed to remove particles as small as 0.12 microns. ULPA filters have a higher filtration efficiency than HEPA filters, but they also have a higher pressure drop and are more expensive.

Are Cleanroom V-Bank HEPA Air Filters compatible with all types of air handling units (AHUs)?

Cleanroom V-Bank HEPA Air Filters are compatible with various types of AHUs, but it is important to choose a filter that is the correct size and airflow rate for the specific AHU.

Can Cleanroom V-Bank HEPA Air Filters remove odors or gases from the air?

Cleanroom V-Bank HEPA Air Filters are designed to remove particles from the air, but they are not effective at removing odors or gases. For odors or gases, activated carbon filters or other specialized filters may be required.

Youth 10,000-level clean workshop

Constant temperature and humidity production environment
Constant temperature and humidity production environment

Youth special structure design

The HEPA air filter designed and produced by Youth Company is a groundbreaking innovation in air filtration technology. Unlike traditional stacked filters, our filter utilizes a unique wedge-shaped structure called the HLi-FLo design, which optimizes the core filtering material for maximum effectiveness.
Our scientific and superior design results in better performance, lower pressure drop, and reduced energy consumption. By utilizing the filter material more efficiently, we can extend the filter’s lifespan and lower the total cost of ownership for our customers. Our product is more efficient and user-friendly, providing a cost-effective solution to clean air.

YOUTH Q&C

High quality
HEPA filter material
Pre-incoming inspection of
HEPA filter material
Factory inspection
- MPPS inspection
Factory inspection
- 100% smoke inspection
