What is a Cleanroom HEPA Box?
A Cleanroom HEPA Box, also known as a HEPA filter housing or unit, is a device used in cleanroom environments to maintain high levels of air cleanliness. It houses a HEPA filter, which traps small particles with high efficiency.
Cleanroom HEPA Boxes are often used in conjunction with a cleanroom HVAC system. The boxes are installed in the ceiling or walls of the cleanroom, and they help to circulate the air, ensuring a consistent flow of filtered air throughout the controlled environment. The filtered air helps to maintain the required cleanliness level by removing contaminants that may be generated within the cleanroom or brought in from external sources.
Why is a Cleanroom HEPA Box Important?
A Cleanroom HEPA Box is important because it helps control contamination, maintain product quality and yield, ensure personnel safety, comply with regulations, and provide process control. It filters out particles and contaminants, creating a clean environment critical for industries with strict quality standards. These factors are crucial in industries where precision, reliability, and stringent quality standards are paramount.
How Does a Cleanroom HEPA Box Work?
A Cleanroom HEPA Box works by drawing in air from the surrounding environment and passing it through the HEPA filter contained within the box. The filter removes any airborne particles and microorganisms that are present in the air, leaving only clean, filtered air to be released back into the cleanroom environment. The box is designed to provide a laminar flow of air, which means that the air flows in a smooth, unidirectional manner, ensuring that there are no dead spots or areas where the air is stagnant.
Types of Cleanroom HEPA Boxes:
Several types of Cleanroom HEPA Boxes are available, each designed to meet specific cleanroom requirements.
These include:
- Supply HEPA Box: It provides filtered air into the cleanroom space, maintaining positive pressure. It draws in air, passes it through a HEPA filter, and releases the clean air into the cleanroom.
- Return HEPA Box: It extracts and filters air from the cleanroom space, maintaining negative pressure. It pulls air from the cleanroom through a HEPA filter and returns the filtered air to the HVAC or exhaust system.
How to choose the HEPA box for cleanroom?
Factors to Consider When Choosing a Cleanroom HEPA Box:
When choosing a Cleanroom HEPA Box, several factors need to be considered. These include:
- Airflow Rate: The airflow rate is the amount of air that can pass through the HEPA filter within a specified time. It is measured in cubic feet per minute (CFM) or cubic meters per hour (CMH). The airflow rate is an essential consideration because it determines the amount of clean air that can be delivered to the cleanroom environment.
- Pressure Drop: Pressure drop refers to the resistance to airflow caused by the HEPA filter. The pressure drop is an essential consideration because it can affect the overall performance of the cleanroom environment. A high-pressure drop can lead to decreased airflow rates, which can negatively impact the effectiveness of the cleanroom.
- Filter Efficiency: The filter efficiency refers to the ability of the HEPA filter to remove particles from the air. It is typically measured as a percentage of particles removed from the air. The filter efficiency is an essential consideration because it determines the level of air cleanliness that can be achieved.
- Size and Dimension: The size and dimension of the Cleanroom HEPA Box are critical because it determines the amount of clean air that can be delivered to the cleanroom environment. The size and dimension of the Cleanroom HEPA Box need to be carefully considered based on the specific requirements of the cleanroom environment.
Maintenance and Cleaning of Cleanroom HEPA Boxes:
Regular maintenance and cleaning of Cleanroom HEPA Boxes are essential to ensure that they continue to function effectively. Maintenance typically involves checking the airflow rate, pressure drop, and filter efficiency to ensure that they are within acceptable limits.
Model | HEPA Size (mm) | Box Size (mm) | Flange Size of Duct (mm) | Height of Box (mm) | Hole size (mm) |
HB 500 | 410×410×93 | 460×460×250 | 200×200 | 500 | 470×470 |
HB 1000 | 550×550×93 | 600×600×250 | 320×200 | 1000 | 610×610 |
HB 1500 | 650×650×93 | 700×700×250 | 320×250 | 1500 | 710×710 |
FAQs:
What is a Cleanroom HEPA Box?
A Cleanroom HEPA Box is a specially designed housing or enclosure that contains a HEPA filter, which is designed to provide a uniform and laminar flow of filtered air in a cleanroom environment.
Why is a Cleanroom HEPA Box important in cleanroom environments?
A Cleanroom HEPA Box is important because it helps to ensure that the air entering the cleanroom is free of contaminants, preventing the spread of airborne particles and microorganisms that can cause contamination.
What are the types of Cleanroom HEPA Boxes available?
The types of Cleanroom HEPA Boxes available include wall-mounted, ceiling-mounted, and portable Cleanroom HEPA Boxes.
What factors need to be considered when choosing a Cleanroom HEPA Box?
The factors that need to be considered when choosing a Cleanroom HEPA Box include airflow rate, pressure drop, filter efficiency, and size and dimension.
How should Cleanroom HEPA Boxes be maintained and cleaned?
Cleanroom HEPA Boxes should be regularly maintained and cleaned to ensure that they continue to function effectively. Maintenance involves checking the airflow rate, pressure drop, and filter efficiency, while cleaning involves removing any dirt, dust, or debris that may have accumulated on the surface of the box or the HEPA filter.
Youth's Customized Feature

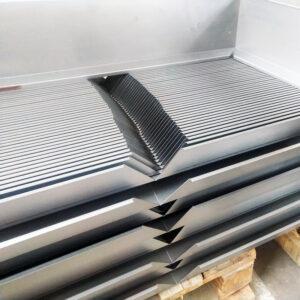

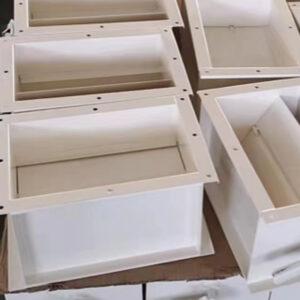

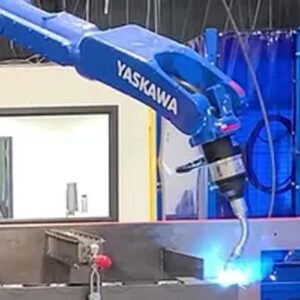

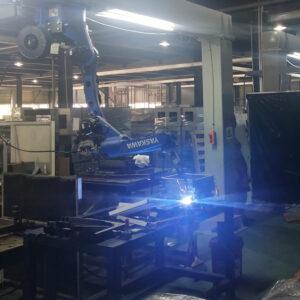

Youth utilizes a semi-automatic production line and employs bending technology instead of welding, which reduces the risk of leakage and lowers energy consumption while minimizing the number of welding seams. This production method is more environmentally friendly. All welding is completed by robots, resulting in high-quality product welding seams that are durable and long-lasting. The end result is a product that is human-like in its precision and quality.

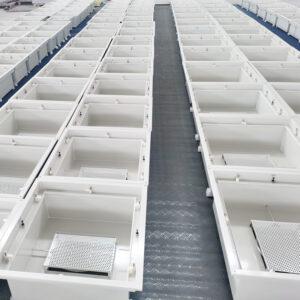

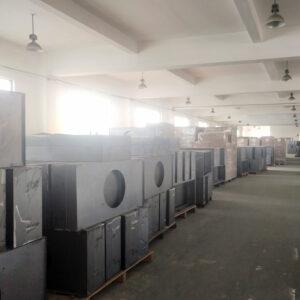

Youth possesses an independent air vent manufacturing workshop spanning over 4000 square meters, with an annual production capacity of 30,000 cleanroom air vents. The company also provides OEM services to several international top brands. With such extensive facilities, Youth can produce high-quality air vents, and our commitment to providing excellent services is unparalleled.
Youth offers a range of sealing options to choose from, including regular mechanical seals, side liquid tank seals, dual liquid tank seals, and more. This allows us to provide customized solutions that meet the specific needs of our international clients.

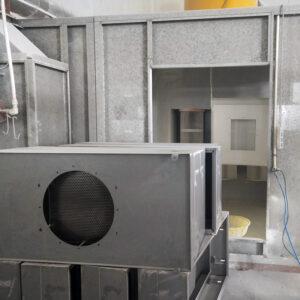

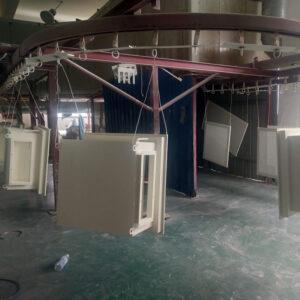

We offer a variety of material and surface customization options, including electrostatically sprayed steel, stainless steel, electrostatically sprayed aluminum, and more. Our international clients can choose from these options to create tailored solutions that meet their specific needs.
& Around - Louvers

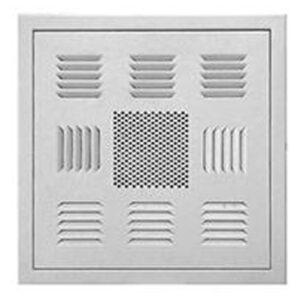

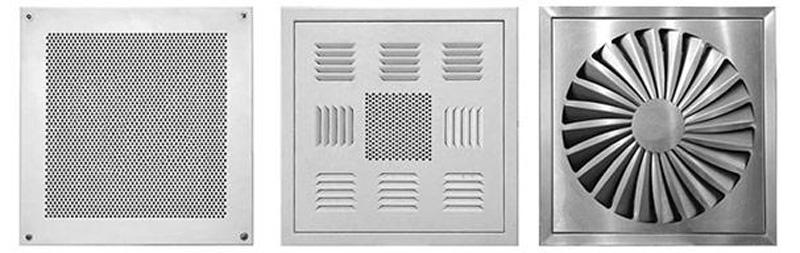

We provide a range of diffuser plate options to choose from, including perforated type, center-perforated and louvers around type, swirl type, and more. This allows our international clients to select the best diffuser plate for their specific application needs.
Youth offers a variety of matching adjustable dampers for our clients, including round, square, and rectangular shapes. The height of these dampers can be customized starting from 130mm, allowing us to provide tailored solutions that meet the unique requirements of our international clients.
